Comparative YOLO Analysis for UAV Disaster Surveillance

Generational comparison of lightweight YOLO nano-scale classification models and activation function micro-optimizations for real-time UAV edge-cloud disaster response on the AIDER dataset.

Go to GitHub Repository

Problem & Solution

Mathematical Membership Functions & Network Loss

Data Engineering Pipelines & System Code Showcase

Below is the structured Python & PyTorch source code separated into logical blocks detailing data partitioning, schema definition, neural graph mutation, layer verification, and model metrics extraction.

1. Stratified ETL Split

Stratified dataset split script for partitioning raw disaster image data (70% training, 20% validation, 10% testing).

import os
import shutil
import random

base_dir = '/content/AIDER'
classes = ['collapsed_building', 'fire', 'flooded_areas', 'normal', 'traffic_incident']

# Define dataset partition ratio schema
train_ratio, valid_ratio, test_ratio = 0.7, 0.2, 0.1

for cls in classes:
    class_dir = os.path.join(base_dir, cls)
    images = [f for f in os.listdir(class_dir) if os.path.isfile(os.path.join(class_dir, f))]
    random.shuffle(images)

    num_images = len(images)
    num_train = int(num_images * train_ratio)
    num_valid = int(num_images * valid_ratio)

    # Partition target file lists
    splits = {
        'train': images[:num_train],
        'valid': images[num_train:num_train + num_valid],
        'test':  images[num_train + num_valid:]
    }

    # Execute filesystem transfer ETL
    for split_name, split_files in splits.items():
        for img in split_files:
            src_path = os.path.join(class_dir, img)
            dest_path = os.path.join(base_dir, split_name, cls, img)
            shutil.copy(src_path, dest_path)

print("ETL Data Partitioning Complete: 70% Train | 20% Valid | 10% Test")

2. Data Schema YAML

Generates dataset YAML metadata configuration file for Ultralytics framework initialization.

import yaml
import os

# Data dictionary configuration schema
data_config = {
    'train': '../AIDER/train',
    'val':   '../AIDER/valid',
    'test':  '../AIDER/test',
    'nc':    5,
    'names': ['collapsed_building', 'fire', 'flooded_areas', 'normal', 'traffic_incident']
}

yaml_file_path = '/content/AIDER/data.yaml'

with open(yaml_file_path, 'w') as file:
    yaml.dump(data_config, file, default_flow_style=False)

print(f"Data schema configuration written to: {yaml_file_path}")

3. PyTorch Graph Mutation

Programmatic activation replacement script to recursively modify PyTorch graph layers (swapping SiLU to ReLU).

import torch.nn as nn

def replace_activation(module):
    """
    Recursively iterates through PyTorch layer modules to replace
    SiLU activation functions with ReLU.
    """
    for name, child in module.named_children():
        if isinstance(child, nn.SiLU):
            setattr(module, name, nn.ReLU())
        else:
            replace_activation(child)

# Apply runtime activation replacement on YOLO model backbone
replace_activation(model.model)
print("SiLU activations successfully swapped to ReLU across neural graph.")

4. Layer Verification

Introspection verification helper function to validate active backbone activation layer types.

def verify_activation_type(model, target_type='SiLU'):
    """
    Introspects underlying PyTorch model modules to verify active layer types.
    """
    if hasattr(model, 'model') and model.model is not None:
        for module in model.model.modules():
            if target_type in str(type(module)):
                return True
    return False

is_silu = verify_activation_type(model, 'SiLU')
print(f"Model Backbone Activation Verification: {'SiLU Active' if is_silu else 'ReLU Active'}")

5. Metrics Extraction ETL

Batch evaluation ETL script for running Ultralytics validation across all trained model checkpoints and logging metrics.

from ultralytics import YOLO

model_folders = [
    'yolo8n_cls', 'yolo8n_cls_silu',
    'yolo11n_cls', 'yolo11n_cls_silu',
    'yolo12n_cls', 'yolo12n_cls_silu'
]

evaluation_results = {}

for folder in model_folders:
    weights_path = f'/content/drive/MyDrive/trained_models/{folder}/weights/best.pt'
    model = YOLO(weights_path)

    # Run test set validation
    metrics = model.val(data='/content/AIDER')

    # Extract & log performance metrics
    evaluation_results[folder] = {
        'top1_acc': float(metrics.top1),
        'top5_acc': float(metrics.top5)
    }
    print(f"[{folder}] Top-1 Acc: {metrics.top1:.4f} | Top-5 Acc: {metrics.top5:.4f}")

UAV Onboard Classification Showcase

Static benchmark showcase evaluating top-performing model checkpoint (yolo8n_silu_best.pt) on sample aerial disaster imagery.

Epoch Learning Curves (Epoch 1 – 50)

Explore real metrics parsed from each model's results.csv log file. Toggle between Top-1 Accuracy, Validation Loss, and Training Loss to compare epoch convergence across all 6 model configurations.

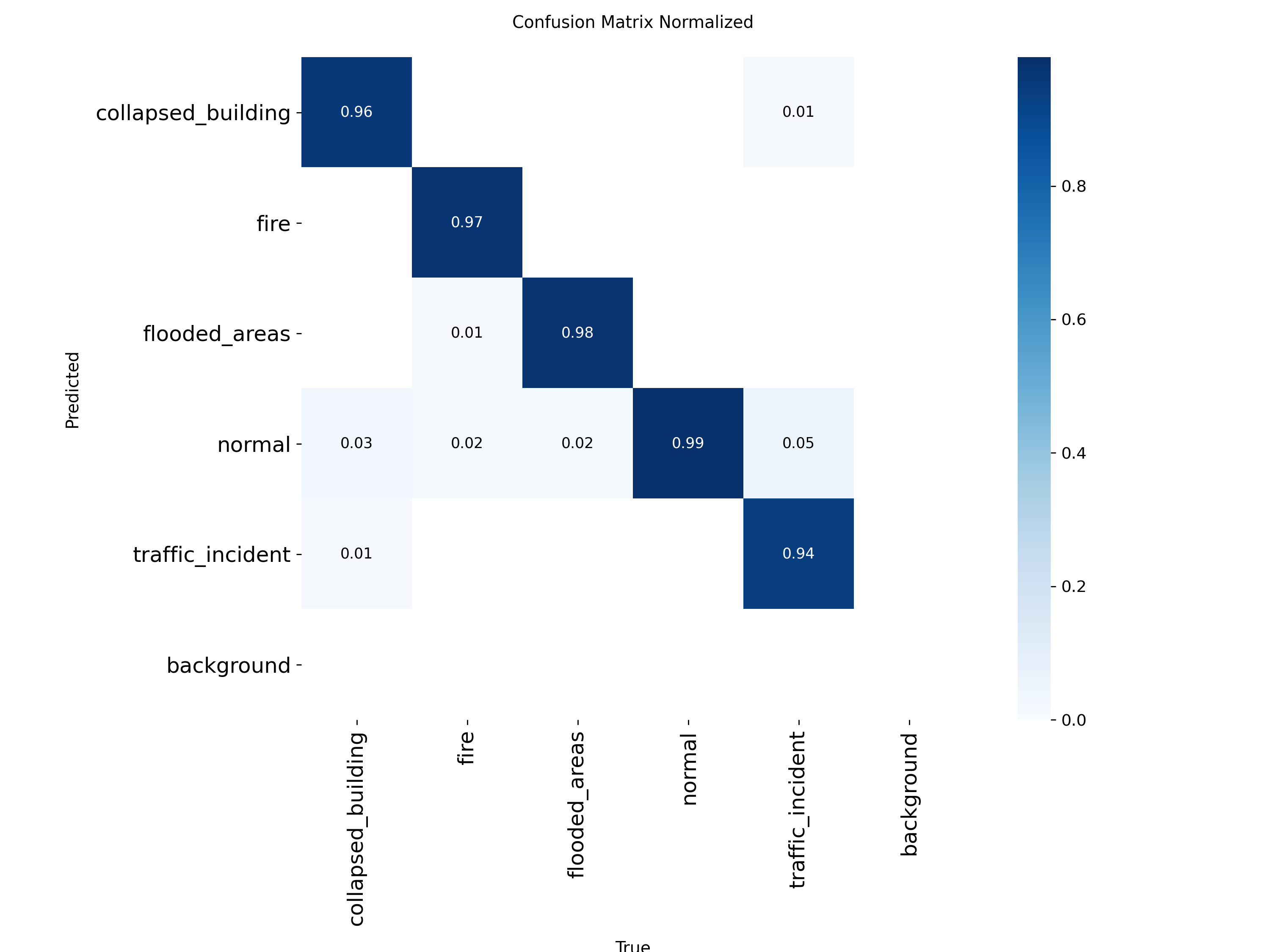

Actual Model Confusion Matrices (AIDER Test Set)

Click a model button below to inspect its high-resolution normalized confusion matrix evaluated on the 646-image AIDER test set.

YOLOv8n-SiLU Baseline — Top-1 Test Accuracy: 98.37% | Validation Loss: 0.0587 (Best Peak Model)

Summary Performance Matrix

Publications, Python Tools & Reproducibility

Interested in the Source Code & Models?

Access the complete comparative training scripts, PyTorch weight checkpoints (.pt), ONNX export scripts, and evaluation notebooks on GitHub.
